Product profileStreet light

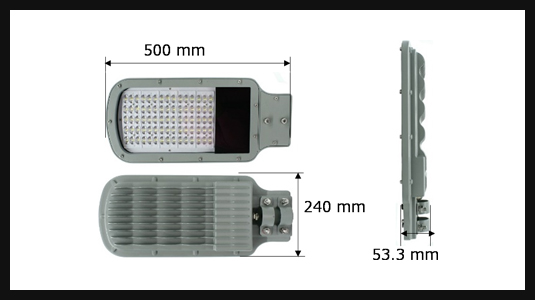

Pole Installation type of LED Street Light

AVIS’s LED Street Lights have a wide range of lineup such as 20W~180W of security lights and street lights.

The design is simple with a power built-in type so It can be used without the limitation of installation places.

Easy to install to the pole structures.

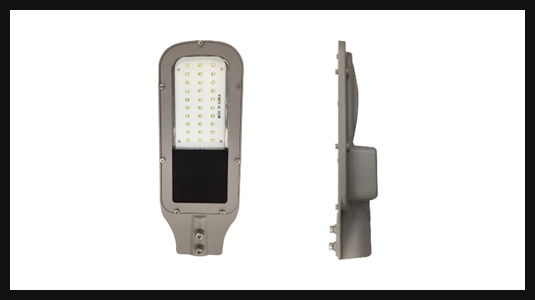

ITEM SPEC
Replaceable
Incandescent light		 80W Mercury Lamp/ 35WMetal halide Lamp
Model SL-20W SL-30W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 20 W 30 W
Total Luminous Flux 2,000lm 3,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75

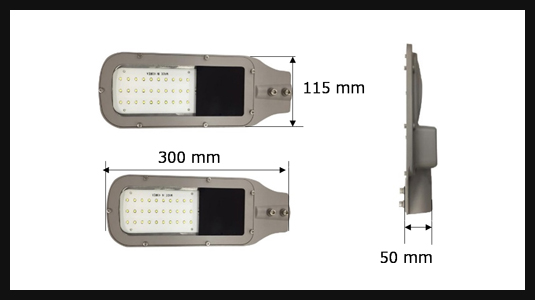

Size 300mm X 115mm X 50ｍｍ
Suitable Pole Joint part Ø45
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 0.9Kg

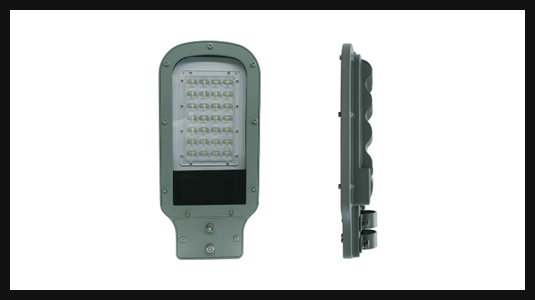

ITEM SPEC
Replaceable
Incandescent light		 80W～100WMercury Lamp / 35W~70WMetal halide Lamp
Model SL-20W SL-25W SL-30W SL-35W SL-40W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 20 W 25 W 30 W 35 W 40 W
Total Luminous Flux 2,000lm 2,500lm 3,000lm 3,500lm 4,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75

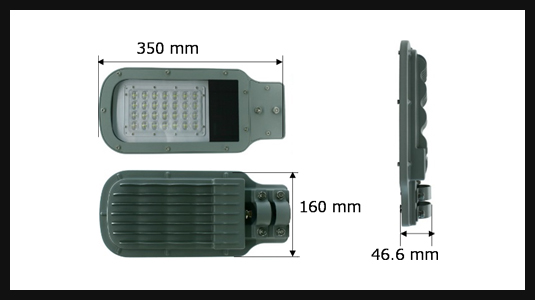

Size 350mm X 160mm X 46.6ｍｍ
Suitable Pole Joint part Ø40
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 1.8Kg

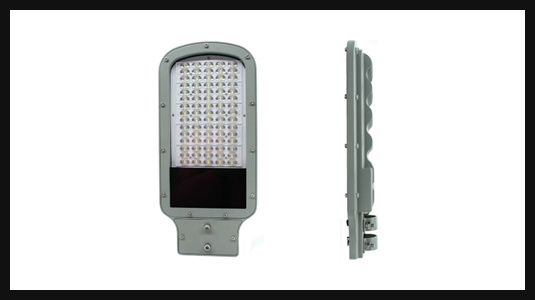

ITEM SPEC
Replaceable
Incandescent light		 70W～100W Metal halide Lamp
Model SL-50W SL-60W SL-70W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 50 W 60 W 70 W
Total Luminous Flux 5,000lm 6,000lm 7,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75

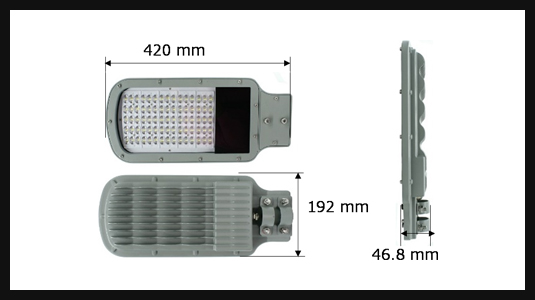

Size 420mm X 192mm X 46.8ｍｍ
Suitable Pole Joint part Ø40
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 2.6Kg
ITEM SPEC
Replaceable
Incandescent light		 70W～100W Metal halide Lamp
Model SL-80W SL-90W SL-100W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 80 W 90 W 100 W
Total Luminous Flux 8,000lm 9,000lm 10,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75
Size 510mm X 192mm X 46.8ｍｍ
Suitable Pole Joint part Ø50
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 3.9Kg

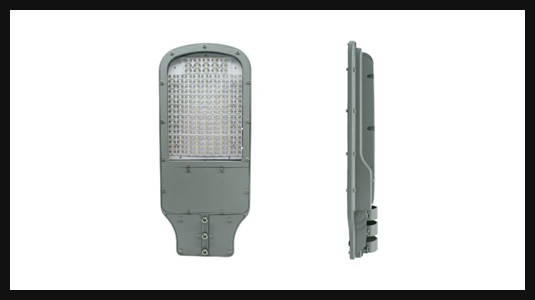

ITEM SPEC
Replaceable
Incandescent light		 250W Metal halide Lamp
Model SL-120W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 120 W
Total Luminous Flux 12,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75

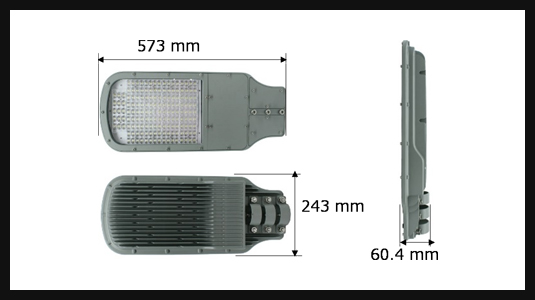

Size 573mm X 243mm X 60.4ｍｍ
Suitable Pole Joint part Ø60
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 5.8Kg
ITEM SPEC
Replaceable
Incandescent light		 700W Mercury Lamp / 400WMetal halide Lamp
Model SL-150W SL-180W
Input Voltage AC140～270V / 50Hz～60Hz
Power Consumption 150 W 180 W
Total Luminous Flux 15,000lm 18,000lm
Luminance Efficiency 100lm/W
Color Temperature 3,000K / 5,000K / 5,700K (Buyer’s Option)
Material Aluminum die casting + tempered glass
Color Rendering Ra 75
Size 685mm X 285mm X 60.4ｍｍ
Suitable Pole Joint part Ø60
Operation temperature
range		 -50～85℃
Degree of protection IP65 / IK08
Surge 15kV
Lifepan Over 50,000 Hr
Weight 7.8Kg
